SPECIFICATIONS
LINEUP

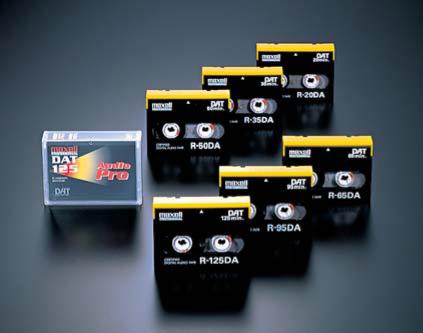

PRO DAT
■
Maxell's DAT Ceramic Armor Metal Particles deliver
2,600 Gauss of magnetic energy.
■
An exceptionally uniform dispersion and surface
calendering (polishing) process contributes toward
raising RF output and lowering modulation noise.
■
Maxell understands the needs of the professional
user and included with our Pro DAT packaging is a
large label area and a specially designed PP storage
case to effectively resist dust, heat and shock.
Item
Unit
Typical value
Tape width
mm
3.81
Physical
Magnetic layer thickness
µm
2.5
properties
Residual elongation
%
0.1
Magnetic
Coercivity
kA/m (Oe)
126 (1,530)
properties
Retentivity
mT (G)
260 (2,600)
Recording
Tape length
Cassette
Case
Model
time
dimensions dimensions
(min)
(m)
(ft)
(mm)
(mm)
R-125DA (P)
125
62
203
R-95DA (P)
95
48
157
R-65DA (P)
65
33
108
R-50DA (P)
50
26
85
73 x 54 x 10.5 80.5 x 59 x 15.5
R-35DA (P)
35
18
59
R-20DA (P)
20
10
33
30

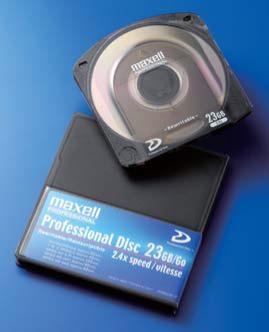

Professional Disc for XDCAM
■
XDCAM-compatible Professional Disc utilizing blue-
violet laser ensures superior picture quality and
storage capacity.
■
Single-sided 12cm optical media cartridge features
CD/DVD-sized disc with enormous 23.3GB capacity.
■
Nonlinear in nature to provide random access
handling of high-quality audio/video content.
■
High-precision stamping process employing high-
precision laser-cutting control realizes the extra-fine
ultra-low-pitch data track required for a blue-violet
laser beam to read it.
■
Speedy 86Mbps transfer rate on one optical head
and 172Mbps on two optical heads.
■
Unique phase change recording layer maximizes
durability and minimizes data error due to minute
warping.
■
0.1mm-thick light-transmitting recording material has
a hard coat to protect the disc surface.
■
High-precision cartridge shields out dust and
minimizes handling error.
SPECIFICATIONS
RECORDING TIME
Codec method
Transfer rate
Audio channels Recording time
4 ch
65 min
HQ mode (Variable bit rate: max. 35Mbps)
2 ch
65 min
4 ch
Approx. 85 min
HD
SP mode (Constant bit rate: 25Mbps)
2 ch
Approx. 90 min
4 ch
112 min
LP mode (Variable bit rate: max. 35Mbps)
2 ch
122 min
DVCAM
25Mbps
4 ch
Approx. 85 min
8 ch
50Mbps
4 ch
Approx. 45 min
SD
8 ch
MPEG IMX
40Mbps
4 ch
Approx. 55 min
8 ch
30Mbps
4 ch
Approx. 68 min
Model
PDRE23A.1P
Storage capacity
23.3GB
Laser wavelength
405nm
172Mbps (2 optical heads)
Data transfer rate
86Mbps (1 optical head)
Disc diameter
120mm
Cartridge size
128.6 x 130.6 x 9.1mm
Recording layer
Phase change material
Erase/write/read cycle
More than 1,000 times
Read cycles
More than one million times
Unit
5 cartridges per inner carton/50 cartridges per outer carton
MPEG HD
MPEG2 MP@HL
Number of pixels:
1,440 x 1,080
