Li-ion

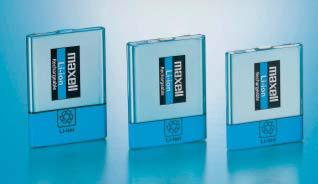

Lithium Ion Rechargeable Battery
■
Higher operating voltage of 3.7V and higher energy density.
■
Higher discharge rate for more powerful devices.
■
Stable discharge under various temperatures/environmental conditions.
■
Superior storage characteristics and convenience including minimal
self-discharge.
SPECIFICATIONS
Positive electrode: Lithium cobalt dioxide, Negative electrode: Graphite
*1: Dimensions of fresh cell without tube.
*2: Approximate value
*3: Capacity is according to the following conditions: Charge CCCV: 1C/4.2V/3h, Discharge 0.2C/E.V.=2.75V, Temperature 25 deg. C
Above specifications are subject to change without notice. For more detailed information and availability, please consult your Maxell representative.
32
Thickness (mm)
4.4±0.2
5.2±0.3
6.2±0.3
7.7±0.3
4.4±0.2
5.2±0.3
4.6±0.2
5.0±0.3
Dimensions
＊
1
Width (mm)
33.8±0.2
33.8±0.2
33.8±0.2
33.8±0.2
33.8±0.2
33.8±0.2
35.8±0.2
35.8±0.2
Height (mm)
42.95+0/-0.5
42.8+0/-0.5
42.6+0/-0.5
42.6+0/-0.5
46.0+0/-0.5
46.0+0/-0.5
40.0+0/-0.5
40.0+0/-0.5
Weight (g)
＊
2
15
18
21
25
16
19
17
18
Charge (CCCV)
Max. voltage (V)
4.2
4.2
4.2
4.2
4.2
4.2
4.2
4.2
Max. current (A)
0.79
0.92
1.10
1.35
0.82
1.00
0.82
0.90
Discharge (CC)
End voltage (V)
2.75
2.75
2.75
2.75
2.75
2.75
2.75
2.75
Max. current (A)
1.19
1.38
1.65
2.03
1.23
1.50
1.23
1.35
Nominal voltage (V)
3.7
3.7
3.7
3.7
3.7
3.7
3.7
3.7
Minimum capacity (mAh)
＊
3
790
920
1100
1350
820
1000
820
900
ICP463443SR
ICP553443AR ICP653443AR
ICP803443AR
ICP463446AR
ICP553446AR
ICP483640SR ICP533640SR
Type (Short Size)
(New product)
(New product)
(New product)
Thickness (mm)
4.4±0.2
5.3±0.3
6.2±0.3
3.9±0.2
4.4±0.2
5.2±0.3
6.2±0.3
Dimensions
＊
1
Width (mm)
29.3±0.2
29.5±0.2
30.0±0.2
33.7±0.2
33.8±0.2
33.8±0.2
33.8±0.2
Height (mm)
47.8+0/-0.5
47.9+0/-0.5
47.1+0/-0.5
49.7+0/-0.5
49.6+0/-0.5
49.6+0/-0.5
49.6+0/-0.5
Weight (g)
＊
2
14
17
20
16
18
21
24
Charge (CCCV)
Max. voltage (V)
4.2
4.2
4.2
4.2
4.2
4.2
4.2
Max. current (A)
0.72
0.86
1.00
0.80
0.95
1.10
1.20
Discharge (CC)
End voltage (V)
2.75
2.75
2.75
2.75
2.75
2.75
2.75
Max. current (A)
1.08
1.29
1.50
1.20
1.43
1.65
1.80
Nominal voltage (V)
3.7
3.7
3.7
3.7
3.7
3.7
3.7
Minimum capacity (mAh)
＊
3
720
860
1000
800
950
1100
1200
ICP043048GK ICP053048GL
ICP653047AS
ICP403450AR
ICP463450SR
ICP553450AR
ICP653450AR
Type (Main Frame)
(Under Development)
